Logic Analysers

Adrian Graham witchy at binarydinosaurs.co.uk
Fri Feb 3 16:34:18 CST 2017


On 03/02/2017 19:43, "Tony Duell" <ard.p850ug1 at gmail.com> wrote:

> But that's why I said 'about'. I am doing order-of-magnitude calculations,
> not trying to design a delay line. I would estimate that between adjacent
> ICs on the same board you'd get a delay measured in 10's or 100's of
> picoseconds. That sort of order. So a 25MHz logic analyser, with an
> effective time resolution of 40ns (if that) is not going to show it.
>
> There is no way you're going to get delays of 40ns between adjacent
> ICs on any reasonable PCB.

This is the sort of thing I mean:

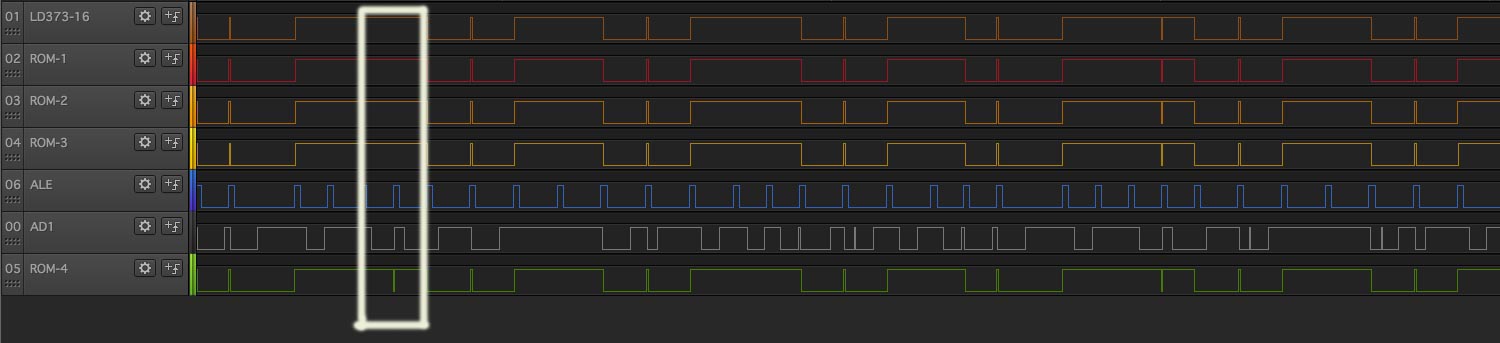

http://www.binarydinosaurs.co.uk/STCExecutelA1checking.jpg

Watching the A1 address line (no triggers just sampling 6 points) and a
pulse appears at ROM4 on the falling edge of the ALE signal but not the
other 3 ROMs or the LS373 flip-flop that's demultiplexing the AD1 pin of the
8085. While I was thinking about the possibility of propagation delay I
noticed this one:

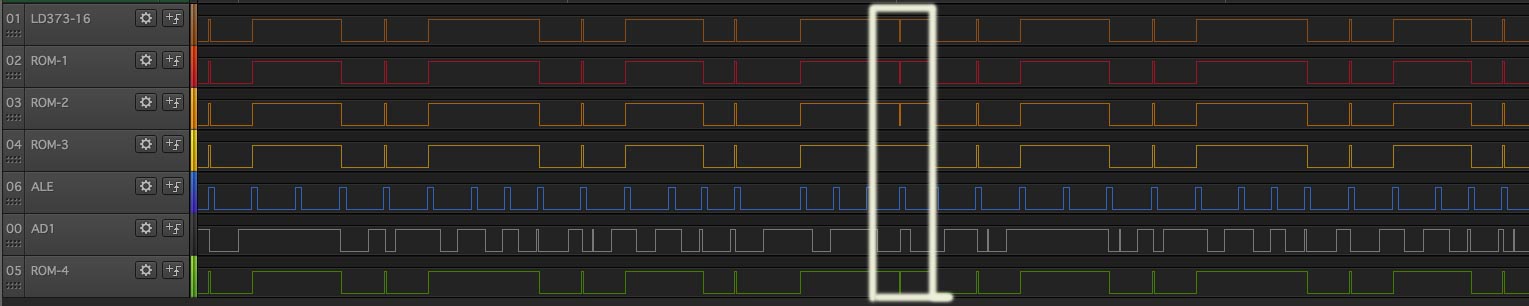

http://www.binarydinosaurs.co.uk/STCExecutelA1checking2.jpg

Pulse missing from ROM3.

Given the paths on this board aren't massive and resistance is equal between
all points when measured with a DMM (and all sockets have been replaced,
traces checked etc) what else could I be looking at?

--
Adrian/Witchy
